Optimizing warehouse space is essential for efficient operations, ensuring that products are stored safely, easily accessible, and organized. Warehouse pallet racking systems play a crucial role in achieving this. With various types and configurations available, you can tailor your racking system to meet your specific needs. In this guide, we will explore 14+ warehouse pallet racking ideas to help you maximize your storage efficiency and keep your warehouse running smoothly.
H2: Why Pallet Racking Systems Are Essential for Warehouses
Pallet racking systems are the backbone of warehouse storage, providing the structure and organization needed to manage large quantities of goods. Here’s why they are indispensable:
- Space Optimization: Racking systems utilize vertical space, freeing up floor space for other operations.
- Easy Access: Properly designed racking systems allow for easy retrieval of goods, improving workflow and reducing downtime.
- Safety: Pallet racking systems are designed to store heavy loads safely, reducing the risk of accidents.
- Scalability: Most racking systems are modular, allowing you to expand as your storage needs grow.
H2: 14+ Warehouse Pallet Racking Ideas
H3: 1. SteelPowerShelving Workstation with Pegboard - Workbench
The SteelPowerShelving Workstation is a versatile racking system that combines storage with workspace functionality, making it perfect for warehouses that require on-site assembly or packing areas.
Key Features:
- Material Thickness: Uprights 0.7 mm, Beam 0.7 mm, Panels 0.4 mm.
- Dimensions: 2.4m (Height) x 3.0m (Length) x 0.6m (Depth).
- Metal Shelves: Included for added durability.
- Flexible and Adjustable Height: Customize the shelf height to suit your needs.
- Extendable Shelving System: Expand your storage as your business grows.
- Easy Assembly: Super easy to assemble with a click-in system.
- Premium Grade Power-Coated Finish: Durable and long-lasting.
- Add-On Kits Available: Extensions available in 1.2m, 1.5m, and 2.0m.

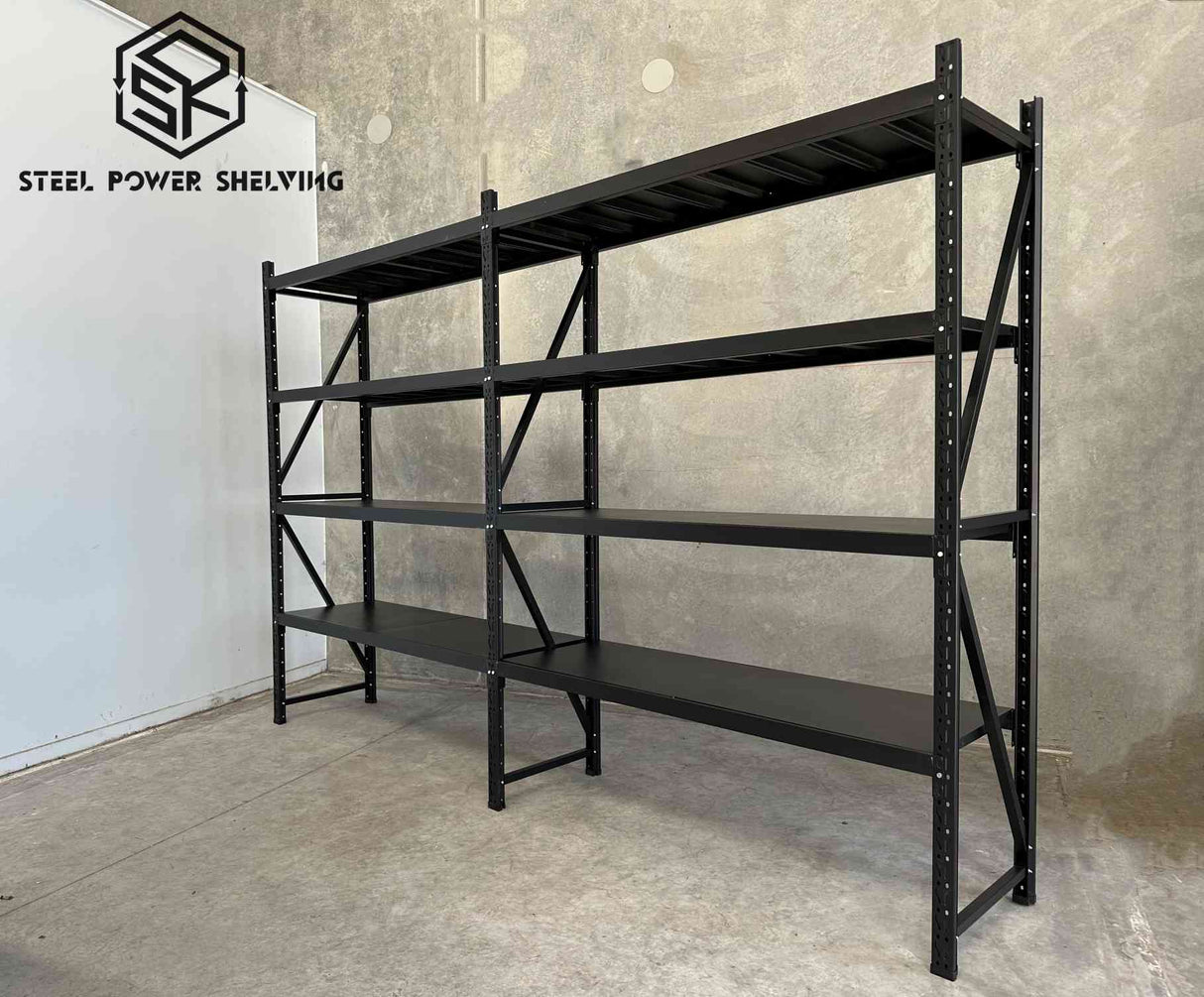

H3: 2. SteelPowerShelving Shelf - Connecting Shelving System
This SteelPowerShelving Shelf system is designed for connecting and expanding your storage capabilities, making it ideal for large warehouses.
Key Features:
- Material Thickness: Uprights 0.6 mm, Beam 0.6 mm, Panels 0.4 mm.
- Dimensions: 1.8m (Height) x 3.0m (Length) x 0.5m (Depth).
- Four Shelves per Bay: Ample storage space for various goods.
- Flexible and Adjustable Height: Customize the height of each shelf.
- Extendable Shelving System: Easy to add more shelving as needed.
- Premium Grade Power-Coated Finish: Ensures durability and a professional look.
- Add-On Kits Available: Extensions available in 1.2m, 1.5m, and 2.0m.
H3: 3. Double Deep Pallet Racking
Double deep pallet racking allows for increased storage density by placing one pallet behind another. This system is ideal for warehouses that need to maximize space but still require access to a large number of SKUs.
Key Features:
- Increased Storage Capacity: Stores twice as many pallets as a standard racking system.
- Selective Access: Access to the back pallet requires moving the front one.
- Best for Bulk Storage: Ideal for products that are stored in bulk and do not require frequent access.
H3: 4. Drive-In Racking System
The drive-in racking system is designed for high-density storage of homogeneous products. It allows forklifts to drive directly into the racking bays, which makes it ideal for storing large quantities of similar items.
Key Features:
- High-Density Storage: Maximizes floor space by reducing aisles.
- LIFO (Last In, First Out): Ideal for products that are not time-sensitive.
- Cost-Effective: Reduces the need for additional storage space.
H3: 5. Push-Back Racking System
Push-back racking is a dynamic storage solution that allows multiple pallets to be stored on a slight incline. When one pallet is removed, the next one automatically slides into place.
Key Features:
- FIFO (First In, First Out): Ensures the oldest stock is used first.
- Increased Storage Density: Stores multiple pallets deep in each lane.
- Reduced Aisle Space: Maximizes storage by reducing aisle requirements.
H3: 6. Cantilever Racking
The cantilever racking system is perfect for storing long, bulky items like lumber, pipes, or steel. It features arms that extend from a single column, allowing for easy access to the items stored.
Key Features:
- Versatile Storage: Ideal for long, irregularly shaped items.
- Easy Access: Open design allows for quick and easy retrieval of items.
- Adjustable Arms: Customize the height and depth to accommodate various products.
H3: 7. Selective Pallet Racking
Selective pallet racking is the most common type of racking system, offering direct access to every pallet. It’s highly flexible and can be configured to fit any warehouse layout.
Key Features:
- Direct Access: Easy access to every pallet.
- Versatile: Can be used with most types of forklifts.
- Adjustable: Shelving height and depth can be customized as needed.
H3: 8. Pallet Flow Racking
Pallet flow racking is a gravity-powered system that uses sloped lanes to move pallets from the loading end to the picking end. It’s an efficient solution for high-turnover products.
Key Features:
- FIFO System: Ensures first-in, first-out stock rotation.
- Automated Movement: Pallets move automatically to the picking end.
- Ideal for High Turnover: Best suited for warehouses with high stock rotation.
H3: 9. Mezzanine Racking
Mezzanine racking is a multi-level storage solution that creates additional floors within your warehouse. It’s ideal for maximizing vertical space and can be used for storage, offices, or work areas.
Key Features:
- Maximizes Vertical Space: Adds additional levels to your warehouse.
- Versatile Use: Can be used for storage, offices, or work areas.
- Customizable: Tailor the design to meet your specific needs.
H3: 10. Mobile Pallet Racking
Mobile pallet racking is a space-saving solution where racks are placed on mobile bases that can be moved along rails. This system eliminates the need for aisles, maximizing storage capacity.
Key Features:
- Maximized Storage: Reduces aisle space to increase storage capacity.
- Flexible Layout: Racks can be moved to create access aisles where needed.
- Best for Cold Storage: Ideal for environments where maximizing space is crucial, such as cold storage.
H3: 11. Carton Flow Racking
Carton flow racking is similar to pallet flow racking but designed for smaller, lighter items. It’s perfect for warehouses dealing with high volumes of small products.
Key Features:
- FIFO System: Ensures efficient stock rotation.
- Easy Picking: Items move forward automatically, reducing picking time.
- Space-Efficient: Maximizes storage for small items.
H3: 12. VNA (Very Narrow Aisle) Racking
VNA racking is designed for warehouses with narrow aisles, allowing you to increase storage density without expanding your warehouse footprint.
Key Features:
- Maximized Floor Space: Allows for more racking in the same area.
- Specialized Equipment: Requires specialized forklifts for operation.
- High-Density Storage: Ideal for warehouses with limited space.
H3: 13. Automated Storage and Retrieval Systems (AS/RS)
AS/RS systems use automated machinery to retrieve and store goods. These systems are highly efficient and ideal for warehouses looking to increase productivity and accuracy.
Key Features:
- Increased Efficiency: Automation reduces picking time and errors.
- Space Optimization: Maximizes vertical space utilization.
- Scalable: Easily expand the system as your needs grow.
H3: 14. Multi-Tier Racking
Multi-tier racking creates multiple levels of storage within a single rack. It’s perfect for warehouses that need to maximize vertical space without expanding their footprint.
Key Features:
- Maximized Vertical Space: Increases storage capacity by adding multiple levels.
- Customizable Layout: Tailor the design to your specific needs.
- Versatile Use: Can be used for various types of products.
H3: 15. Drive-Through Racking
Drive-through racking is similar to drive-in racking but allows access from both ends, making it ideal for warehouses that require high-density storage with easy access.
Key Features:
- High-Density Storage: Maximizes storage capacity.
- Bilateral Access: Allows forklifts to enter from both ends.
- LIFO or FIFO: Can be used for both LIFO and FIFO systems.
H2: FAQs About Warehouse Pallet Racking
H3: Q1: What is the most space-efficient pallet racking system?
The most space-efficient system depends on your specific needs. Drive-in/Drive-through racking is great for high-density storage, while VNA racking maximizes floor space by reducing aisle width.
H3: Q2: How do I choose the right pallet racking system for my warehouse?
Consider factors like the type of goods you store, the frequency of access, available space, and budget. Selective pallet racking is versatile, while push-back racking is better for high-density storage with moderate SKU variety.
H3: Q3: What are the safety considerations for pallet racking?
Ensure that the racking system is properly installed and maintained. Regular inspections for damage, correct load distribution, and adherence to weight limits are essential for safe operation.
H2: Summary Table: 14+ Warehouse Pallet Racking Ideas
| Racking System | Best For | Key Features |
|---|---|---|
| SteelPowerShelving Workstation | Small warehouses with workspace needs | Versatile, easy assembly, adjustable height |
| SteelPowerShelving Shelf | Expanding storage capabilities | Extendable, premium finish, flexible height |
| Double Deep Pallet Racking | High-density storage | Increased capacity, selective access |
| Drive-In Racking | Bulk storage of homogeneous products | High-density, cost-effective |
| Push-Back Racking | FIFO system, high turnover | FIFO, automated movement, space-efficient |
| Cantilever Racking | Long, bulky items | Versatile, easy access, adjustable arms |
| Selective Pallet Racking | General warehouse use | Direct access, versatile, adjustable |
| Pallet Flow Racking | High turnover products | FIFO, automated movement, efficient |
| Mezzanine Racking | Maximizing vertical space | Multi-level, customizable, versatile |
| Mobile Pallet Racking | Cold storage, space maximization | Maximizes storage, flexible layout |
| Carton Flow Racking | Small, high-volume products | FIFO, easy picking, space-efficient |
| VNA Racking | Warehouses with limited space | High-density, maximized floor space |
| AS/RS Systems | Automation and efficiency | Increased efficiency, scalable, automated |
| Multi-Tier Racking | Vertical space maximization | Multi-level, customizable, versatile |
| Drive-Through Racking | High-density, easy access | Bilateral access, LIFO or FIFO |
Implementing the right pallet racking system can transform your warehouse operations, improving efficiency, safety, and space utilization. With the wide variety of options available, you can find the perfect solution tailored to your needs.
