Why steel shelving tips over

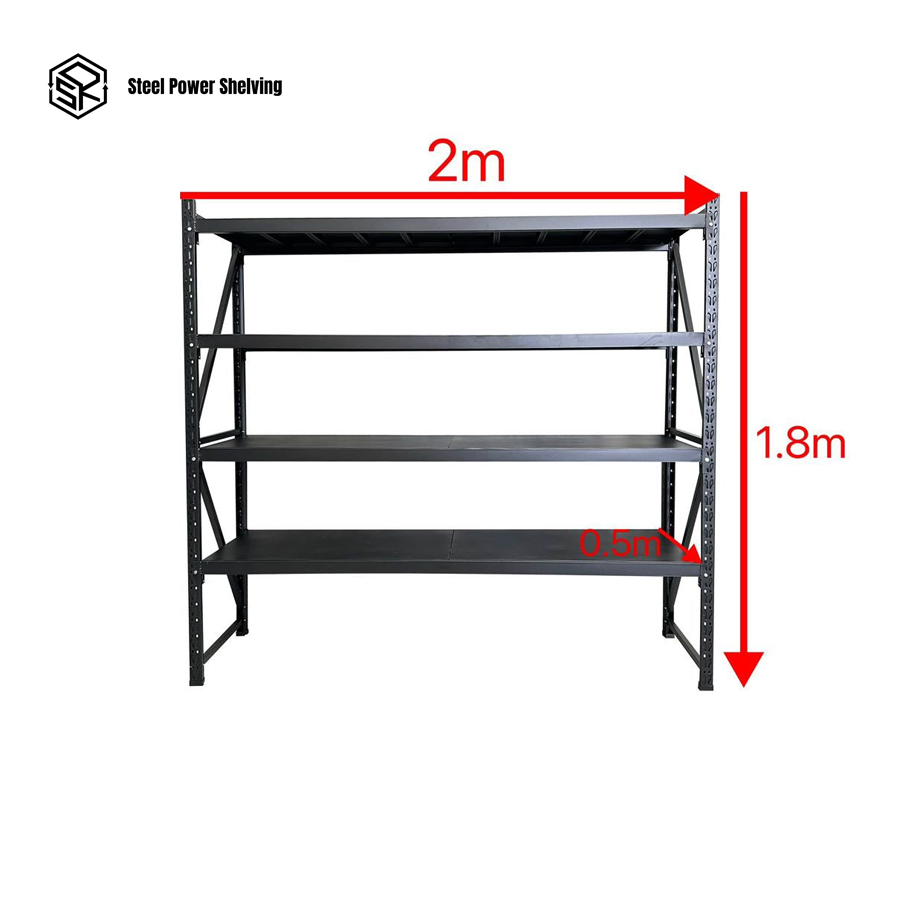

Tip-over is about geometry, not just weight. A tall, narrow, shallow unit has a high centre of gravity and a small footprint, so a modest sideways or forward force can lift the back feet. Our bolt-together steel frames come in heights of 1.8m, 2.0m and 2.4m, with depths of 0.5m or 0.6m. A 2.4m upright on a 0.5m deep base is a tall, slim tower, and that is exactly the shape most likely to lean forward when the top shelves are loaded or when someone tugs at a stuck carton. Anchoring converts a freestanding tower into a fixed structure that borrows stability from your slab or wall.
Work out your height-to-depth ratio first
A simple, widely used rule of thumb is that any freestanding shelving unit taller than roughly four times its depth should be anchored. Divide the height by the depth: a 2.0m high unit at 0.5m deep is a 4:1 ratio, and a 2.4m high unit at 0.5m deep is around 4.8:1, both at or above the threshold. A 1.8m unit on a deeper 0.6m base is a gentler 3:1 and more forgiving, though anchoring is still the surest fix. Choosing a deeper 0.6m frame over a 0.5m one, where floor space allows, gives you a lower ratio and a more stable base before you even reach for a drill.
How to anchor to a concrete floor
Fixing to a concrete slab is the strongest option because the anchor pulls against the full mass of the floor. Work through it in order:
- Position and level the unit. Set the fully assembled frame where it will live, hard against the wall if possible, and check the uprights are plumb. Pack any low feet with thin steel or plastic shims so all feet sit flat.
- Choose the right anchor. Use masonry expansion or sleeve anchors rated for concrete, commonly sold as dynabolts or concrete screw anchors. Plastic wall plugs and general timber screws are not suitable for a slab. Anchoring hardware is usually not supplied with flat-pack shelving, so buy fixings sized to the holes in the feet.
- Mark and drill. Mark through the foot holes, move the unit aside, and drill with a masonry bit in a hammer drill to the depth the anchor specifies. Vacuum or blow the dust out of each hole so the anchor grips properly.
- Fix and tighten. Reposition the frame, drop the anchors through the feet, and tighten to the anchor's stated torque. Two anchors on the two front feet are the priority, since forward tipping is the main hazard; four is better on a 2.4m unit.
Anchoring to a wall when you cannot drill the floor
If your slab is tiled, epoxy-coated, or you simply do not want holes in the floor, brace the top of the unit back to the wall instead. Fix an L-bracket or a fixing strap between an upright near the top and the wall behind. Into brick or concrete, use a masonry anchor; into a timber-framed, plasterboard-lined wall, locate the stud with a detector and drive a structural screw into solid timber, never into plasterboard alone. Because the brace sits high on the frame, it directly counters the forward lean that causes tip-over. Wall bracing also pairs well with our connecting, shared-upright shelving runs, where one long line of bays can be tied back to the wall at several points.
Load it so it cannot tip in the first place
Good loading habits do half the work before any anchor is fitted. Three rules matter most:
- Heaviest items on the lowest shelves. Keeping mass low drops the centre of gravity and makes the bay far harder to lift off its back feet. Reserve the top shelves for light, bulky, occasional-use items.
- Spread the load, do not concentrate it. Our light-duty shelving is rated to 200kg per shelf and our heavy-duty range to 300kg per shelf, but those figures assume the weight is spread evenly across the shelf. A 300kg engine part parked on one corner behaves very differently from 300kg of evenly stacked boxes.
- Do not overfill the top. Even a well-anchored unit is easier and safer to use when the top third stays light.
The frames themselves are built for this kind of duty. Light-duty units use 0.6mm uprights and beams, while the heavy-duty range steps up to 0.7mm steel, all powder-coated, with four adjustable shelves per bay so you can set shelf heights to suit the load rather than forcing tall items onto a high, unstable shelf.
Do you need a certified rack at home?
For household garages and light-commercial storage, generally no. Formal racking certification is written for industrial pallet racking that is loaded and unloaded by forklift, a very different environment from a home garage. A domestic user storing tools, cartons, camping gear and paint tins typically does not need a certified rack. What genuinely keeps you safe is honest assembly, loading within the per-shelf rating, and anchoring anything tall. That is the same practical standard you would apply to sturdier steel shelving from Bunnings, Kmart, Officeworks or Stratco, and it is worth spending a few dollars on the right concrete anchors to get it right.
Frequently Asked Questions
Do I really need to anchor my steel shelving?
In most homes and garages, yes for tall units. As a widely used rule of thumb, freestanding shelving taller than about four times its depth should be anchored. A 2.0m or 2.4m high unit on a 0.5m deep frame sits at or above a 4:1 ratio, so a floor or wall anchor is the safest choice. Shorter, deeper units loaded with the heavy items down low are more forgiving, but anchoring is still the reliable way to prevent tip-over.
What anchors should I use to fix steel shelving to a concrete floor?
Use masonry expansion or sleeve anchors rated for concrete, commonly sold as dynabolts or concrete screw anchors at Bunnings and similar. Plastic wall plugs and timber screws are not suitable for a concrete slab. Match the anchor diameter to the hole in the shelving foot, drill with a masonry bit and hammer drill, blow out the dust, then tighten to the anchor's torque spec. Anchoring hardware is generally not supplied with flat-pack shelving, so buy anchors suited to your slab.
How do I anchor shelving to a wall instead of the floor?
Fix the top of the frame back to the wall with an L-bracket or fixing strap. Into masonry or concrete, use a masonry anchor; into a timber-stud wall, find the stud and drive a structural screw into solid timber rather than plasterboard alone. Wall fixing is ideal when you cannot drill the slab, for example over tiles or a coated floor, and it directly stops the unit from toppling forward.
Where should I put the heaviest items on the shelves?
Always on the lowest shelves. Keeping mass low drops the centre of gravity and makes the whole bay far harder to tip. Spread weight evenly across each shelf too: our light-duty shelves are rated to 200kg per shelf and heavy-duty shelves to 300kg per shelf when the load is distributed, not concentrated at one end or on a single corner.
Does home steel shelving need engineering certification like AS/NZS 4084?
For domestic and light-commercial storage shelving, generally no. Formal racking certification standards are aimed at industrial pallet racking loaded by forklifts. Home garage and workshop shelving sits outside that world, so a household user typically does not need a certified rack. What matters for safety is correct assembly, sensible loading within the per-shelf rating, and anchoring tall units.
Can I pick up shelving in Brisbane and anchor it the same day?
Yes. Steel Power Shelving stocks its range in a Brisbane warehouse at Willawong (ABN 25 655 838 734), with same-day pickup available, so you can collect a unit and anchor it that afternoon. Customers in Melbourne, Sydney and other cities are serviced by delivery rather than pickup, as the warehouse and same-day collection are Brisbane-only.
The bottom line
Anchoring is the cheapest safety upgrade you can make to a steel shelving unit. Check your height-to-depth ratio, fix tall bays to the slab or brace them to the wall, keep the heavy gear low, and load evenly within the 200kg or 300kg per-shelf rating. Do that and a well-built steel rack will stay exactly where you put it for years.
By Craig Dunstan, Brisbane
]]>
