By Craig Dunstan, Brisbane
When garage shelving is overloaded, the failure is usually gradual rather than dramatic: shelves deflect and sag under the load, stress transfers into the uprights and connections, and a tall unit loaded top-heavy becomes progressively easier to tip. Staying safe is straightforward — know your per-shelf and total unit ratings, spread loads evenly rather than concentrating them, keep the heaviest items on the lowest shelves, and anchor tall units according to the manufacturer's instructions.
This article explains what overloading actually does to a steel shelving unit, why the way weight is placed matters as much as how much there is, and the practical rules that keep a garage installation well inside its ratings for years.
What overloading does to a shelving unit
Steel shelving fails in predictable ways, and none of them require a spectacular collapse to be a problem:
- Shelf deflection. The first visible sign is a shelf bowing downward in the middle. A small, temporary deflection under load is normal engineering behaviour; a shelf that stays bowed after unloading, or that visibly sags more each month, is telling you it is carrying more than it should.
- Stress on uprights and connections. Load on every shelf travels into the vertical uprights and the points where shelves meet them. Overloading concentrates stress at these connections, and a unit that has been persistently overloaded can be compromised even when it still looks straight.
- Instability and tipping. A unit loaded heavily at the top carries its centre of gravity high. It may stand happily until something changes — a knock from a car door, someone pulling a heavy box off a high shelf — and then the margin that a properly loaded unit would have simply is not there.
The common thread: overloading rarely announces itself. That is why ratings, not appearances, should set your limits.
Evenly distributed vs point loads
Every reputable shelving rating — including Steel Power's — assumes the load is evenly distributed across the shelf surface. The same total weight behaves very differently depending on placement:
- A load spread across the full shelf shares the work across the whole shelf and both ends.
- The same weight stacked as one dense block in the centre of the shelf — a point load — concentrates bending force at the weakest part of the span.
- Weight piled at one end or one corner loads a single upright disproportionately.
Practically: break dense loads up, lay them flat rather than stacking them into towers, and slide the heaviest items toward the ends of the shelf where the structure is stiffest. If an item is so dense it cannot be spread out, put it on the bottom shelf.
Per-shelf vs total unit ratings
Shelving carries two ratings, and mixing them up is the most common way people accidentally overload:
- The per-shelf rating is the maximum for each individual level, evenly distributed.
- The total unit rating is the maximum for the whole frame, across all load-bearing shelves. It is not permission to put the whole figure on one level.

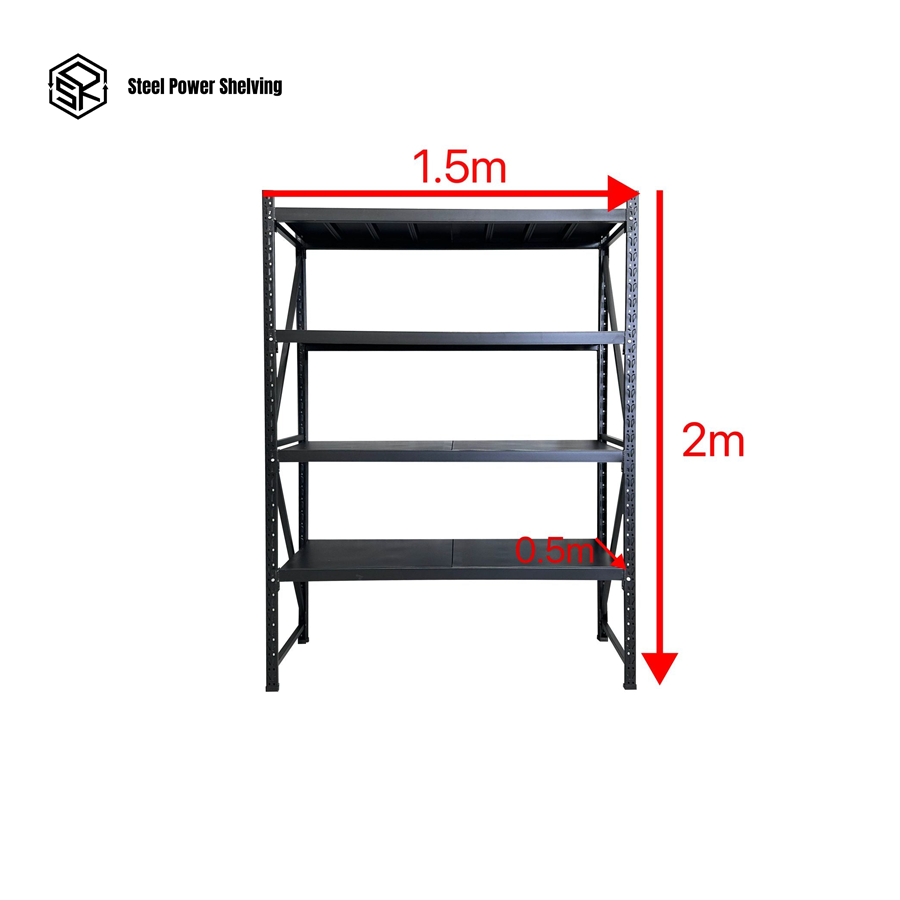

On Steel Power's ranges, the light-duty line is rated to 200kg per shelf and 800kg total per unit across four load-bearing shelves, and the heavy-duty line to 300kg per shelf and 1,200kg total per unit. We cover the distinction in detail in per-shelf vs total unit load ratings explained. Whatever brand you buy, if it does not publish both numbers, assume the marketing figure is the whole-unit one and divide accordingly.
Practical rules to stay within ratings
None of this requires weighing every box. A handful of habits keeps a unit safely inside its ratings:
- Heaviest low. Bottom shelves take the densest items — fluids, tool chests, machinery. This lowers the centre of gravity and makes tipping dramatically less likely.
- Know your two numbers. Check the per-shelf and total unit ratings before loading, and buy the rating for your heaviest realistic shelf, not your average one.
- Spread, don't stack. Distribute weight across each shelf; avoid single dense towers in the centre of a span.
- Anchor tall units. Fix tall shelving to the wall in accordance with the manufacturer's instructions, especially in garages where vehicles, kids and bikes move around it.
- Never climb the unit. A person's weight is a moving point load applied in exactly the wrong places. Use a step ladder.
- Inspect occasionally. Look for permanent shelf bow, leaning uprights or loosened connections. If a shelf stays deflected when empty, retire or reload it — do not "keep an eye on it" while it carries the same weight.
Buying enough rating in the first place
The cheapest way to avoid overloading is to buy honest headroom. Steel Power publishes genuine, tested per-shelf ratings across its garage shelving range: 200kg per shelf for household tubs and lighter garage gear, and a 300kg-per-shelf heavy-duty line — detailed in the 300kg heavy-duty spec breakdown — for workshop equipment and dense automotive loads. If you are hovering between the two, the heavier rating costs less than replacing a strained unit later.
FAQ
Q: What happens if I put too much weight on garage shelving?
A: Typically the shelf deflects and sags first, then stress concentrates in the uprights and connections, and a top-heavy unit becomes easier to tip. Failure is usually gradual and easy to miss, which is why you should work from the published ratings rather than waiting for visible warning signs.
Q: Is a slightly sagging shelf dangerous?
A: A small deflection under load that disappears when the shelf is emptied is normal. A shelf that stays bowed when empty, or sags further over time, has been overloaded — reduce the load on it, redistribute weight, or replace the shelf according to the manufacturer's guidance.
Q: What is the difference between a per-shelf and a total unit rating?
A: The per-shelf rating is the maximum each level can carry with the load evenly distributed. The total unit rating is the ceiling for the entire frame across all load-bearing shelves — for example, Steel Power's light-duty line is 200kg per shelf and 800kg per unit. The total figure is never a single-shelf allowance.
Q: Why do ratings say “evenly distributed load”?
A: Because placement changes everything. Weight spread across a shelf shares the work across the whole structure, while the same weight concentrated in the centre — a point load — applies far more bending force. Spread dense items out, keep them low, and avoid stacking heavy towers mid-span.
Q: Do I need to anchor garage shelving to the wall?
A: Tall units should be anchored in accordance with the manufacturer's instructions, particularly in busy garages. Anchoring costs a few minutes during assembly and removes most of the tipping risk that comes with high shelves and moving people, bikes and car doors.
Q: How do I choose shelving I won't overload?
A: Size the rating to your heaviest realistic shelf, not your average one. Steel Power's garage range is rated at a genuine 200kg per shelf (800kg per unit) on the light-duty line and 300kg per shelf (1,200kg per unit) on the heavy-duty line — if you are in doubt between them, take the higher rating for headroom.
